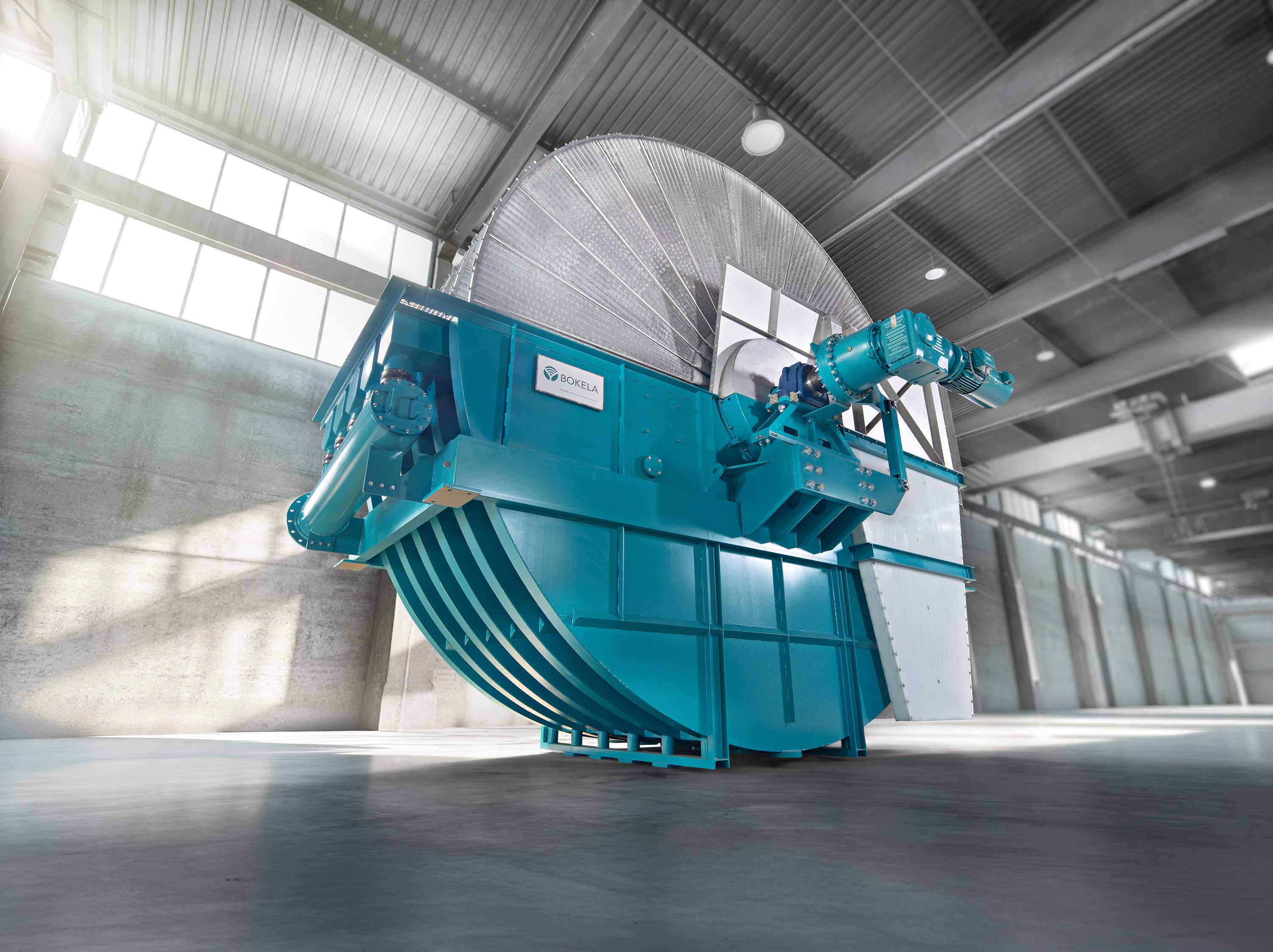

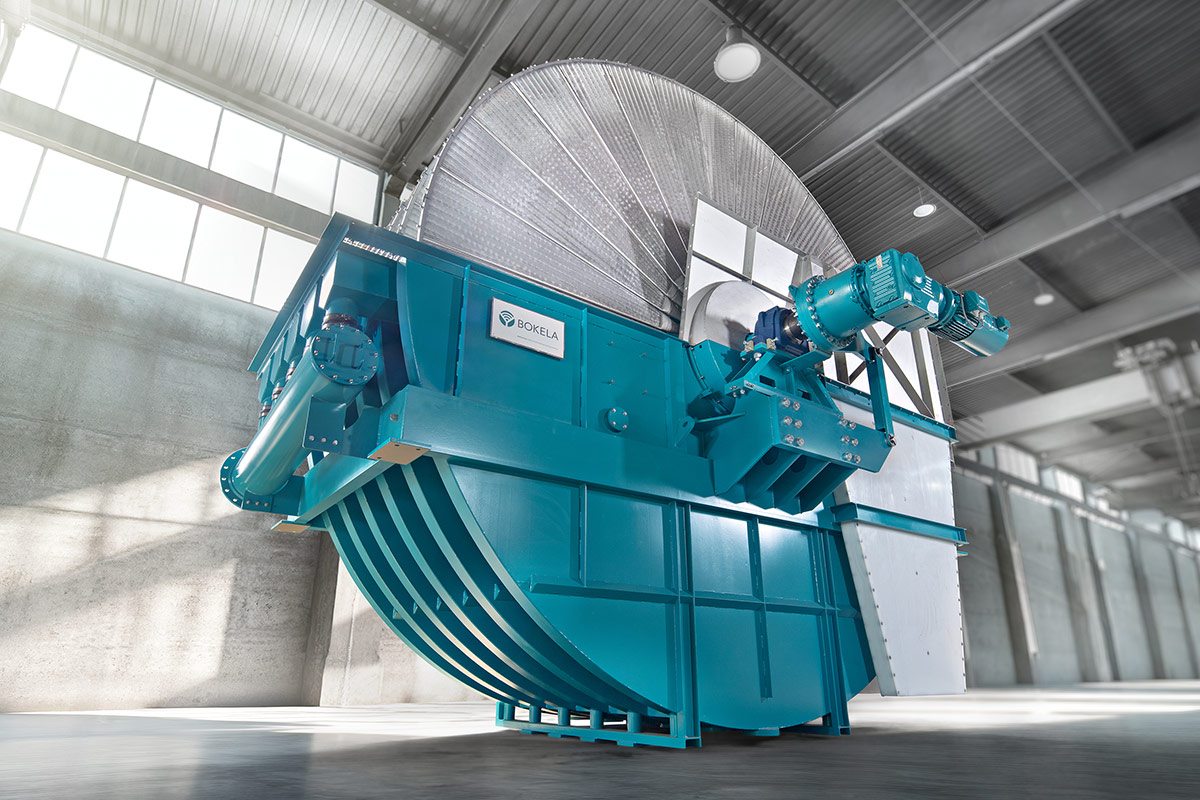

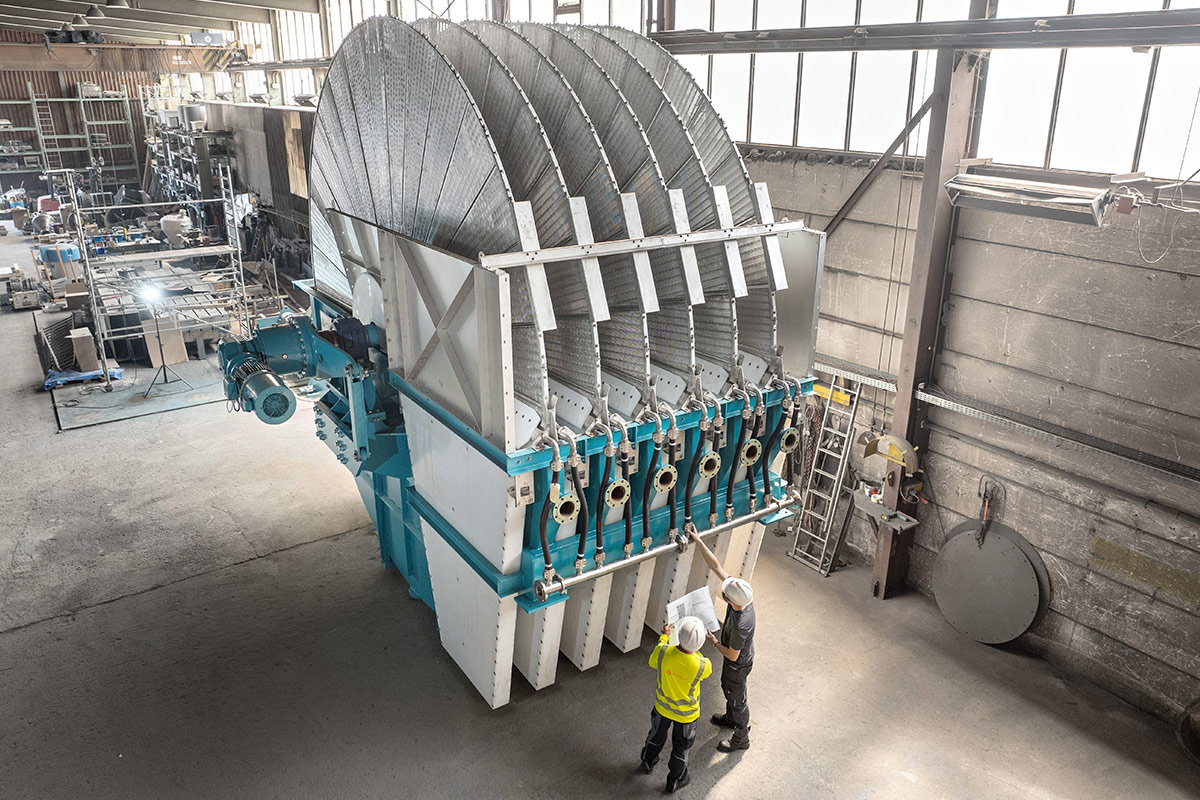

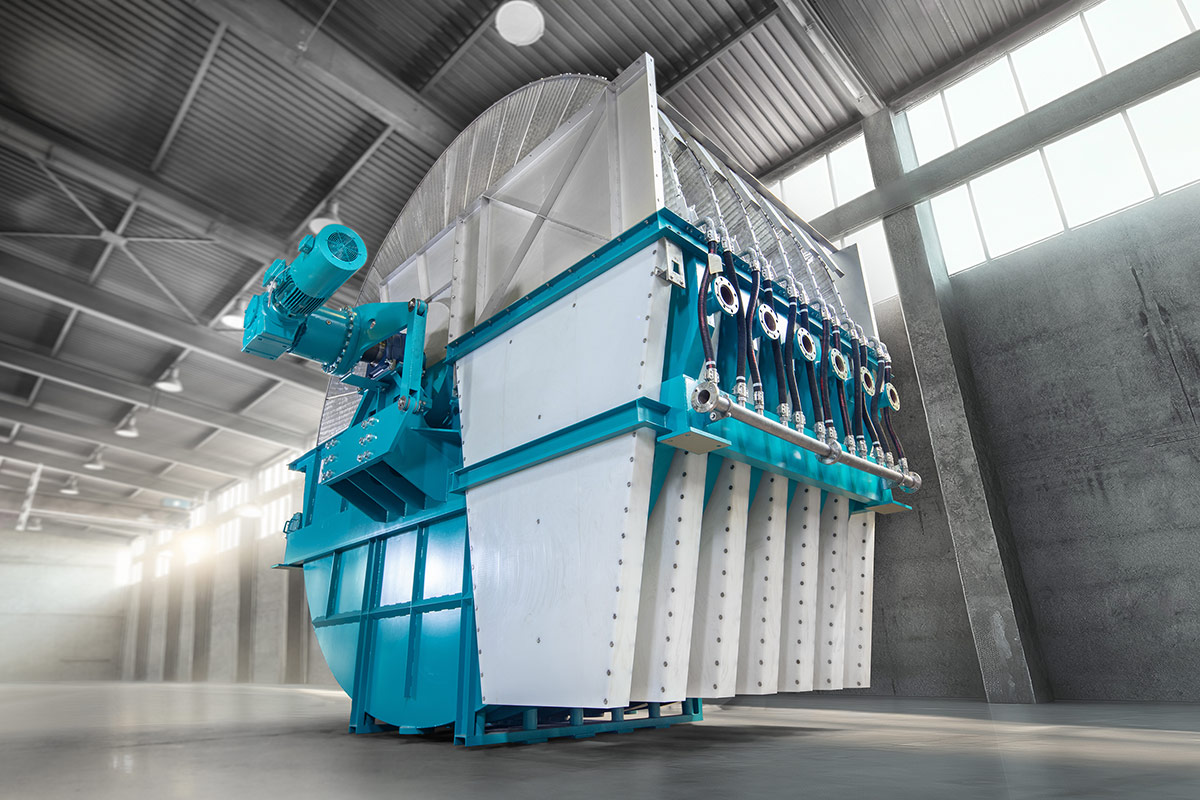

BoVac Disc XL352 – The World's Largest Vacuum Disc Filter
The BoVac Disc XL352 from BOKELA is the world’s largest vacuum disc filter. With a filtration area of 352 m², it boasts an impressive capacity of up to 1,000 tons of solids per hour and exceptionally low residual moisture levels. Yet it requires only around 10% more floor space than our previous largest model, the L176 – meaning that replacing it could double your throughput (with only minor adjustments to your building and the transfer point to the conveyor belt). The unique BoVac Disc XL352 thus sets new standards in the filtration of particulate solids.
Speak to our experts directly
Book your free consultation now!
Introducing the BoVac Disc XL352 high-performance vacuum disc filter. With its enormous throughput and maximum efficiency, it sets new standards in industrial filtration. Take a first look at the world’s largest vacuum disc filter:
Technical Data of the BoVac Disc XL352
The BoVac Disc XL352 from BOKELA is our flagship vacuum disc filter and sets new standards in industrial filtration. The following overview outlines the key technical specifications of our extensive range:
| Filter Type [–] | M22 | M44 | M66 | M88 | M176 | L88 | L132 | L176 | XL352 |
|---|---|---|---|---|---|---|---|---|---|
| Disc Diameter [m] | 4.1 | 4.1 | 4.1 | 4.1 | 4.1 | 5.6 | 5.6 | 5.6 | 6.4 |
| No. of Discs [–] | 1 | 2 | 3 | 4 | 8 | 2 | 3 | 4 | 6 |
| Filtration Area [m²] | 22 | 44 | 66 | 88 | 176 | 88 | 132 | 176 | 352 |
| No. of Control Heads [–] | 1 | 1 | 1 | 1 | 2 | 1 | 1 | 1 | 1 |
| No. of Segments per Disc [–] | 20 | 20 | 20 | 20 | 20 | 30 | 30 | 30 | 30 |
Is the lowest possible residual moisture content essential for your needs? Or would you prefer to maximise your throughput? Enter just a few process parameters into our tailings calculator to receive an initial estimate of the filtration area, residual moisture content and throughput for your project. Our experts are available for a free consultation afterwards to provide detailed information and initial suggestions tailored to your specific requirements. Further information on tailings filtration can be found on our website tailings-filtration.com, where the topic is covered in depth.
Disclaimer: All figures are estimates only and are based on historical test data. Without testing original samples in our laboratory, no guarantee can be given regarding the accuracy of the results or the suitability of the proposed filter sizing.
Find out more about BOKELA's BoVac Disc vacuum disc filters. Our case studies offer valuable insights into the performance and applications of our high-performance disc filters.

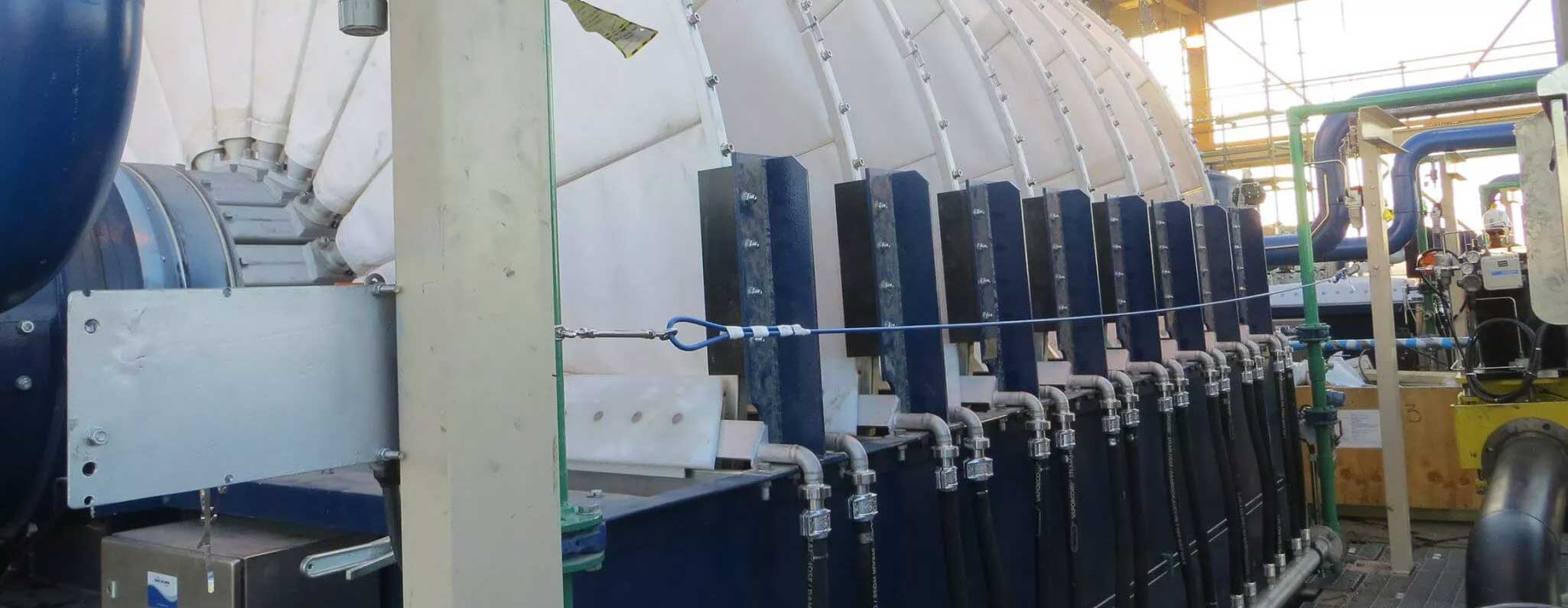

Two BoVac Disc filters are operated for dewatering of zinc tailings from a copper and zinc mine in Australia.
Read more

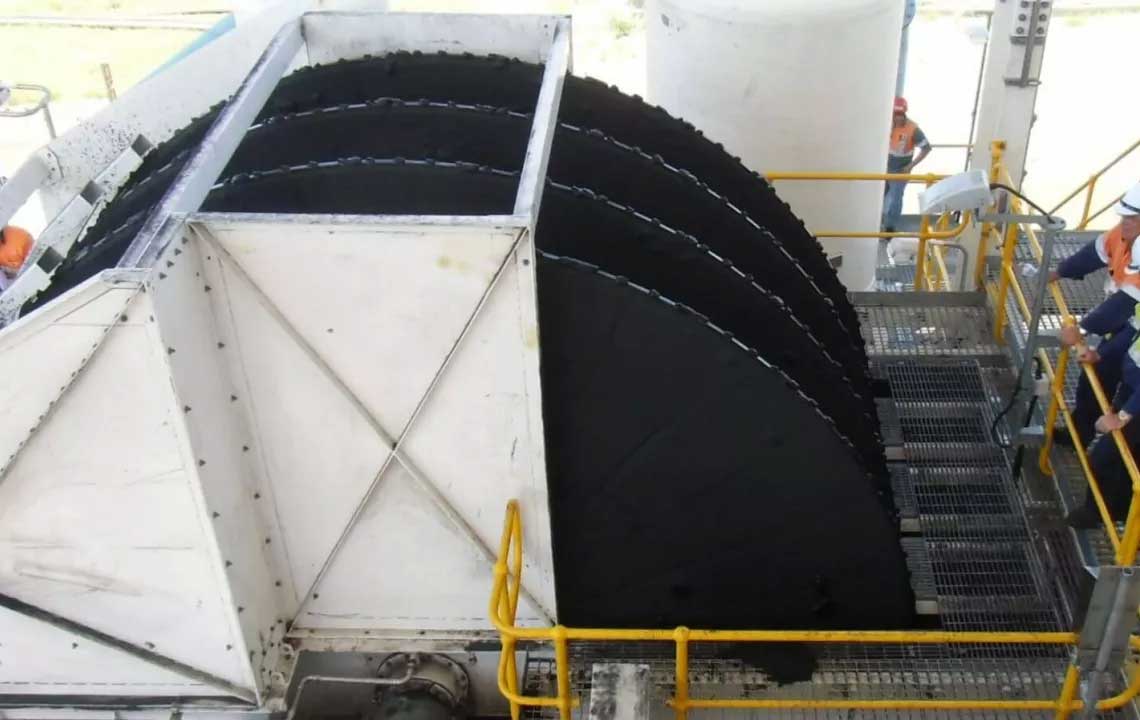

Two BoVac Disc filters are used in a coal preparation plant in Australia for the filtration of flotation coal concentrate.
Read moreDownload the BoVac Disc XL352 whitepaper for free now
Our 23-page whitepaper, presented at the International Conference on Paste, Thickened and Filtered Tailings, discusses the development of the BoVac Disc XL352. This technical report provides insights into the development of the filter, the challenges encountered during its design and commissioning, and its application in tailings filtration. Simply fill in the form below to receive the whitepaper by email.
- The development of the world's largest vacuum disc filter
- From the initial idea to full-scale operation
- Experiences, challenges & lessons learned.
- Insights into laboratory tests, filter design & real-world data
FAQ: Frequently asked questions about the BoVac Disc XL352
What makes the BoVac Disc XL352 the world's largest disc filter?
With a filtration area of 352 m² per filter unit, a disc diameter of 6.4 m, 6 filter discs and 30 filter segments per disc, the BoVac Disc XL352 sets new global standards in vacuum filtration. No other vacuum disc filter achieves this combination of filter area, throughput and compact design. Developed and manufactured by BOKELA (Karlsruhe, Germany).
How much greater is the throughput of the BoVac Disc XL352 compared with standard vacuum disc filters?
BOKELA's filters have a throughput that is up to 100% higher than that of conventional disc filters. BOKELA's unique hydraulic design ensures an effective pressure difference across the filter cloth that is up to 100% higher than competing products. The result is extremely high specific throughput rates, intensive cake dewatering and low residual moisture, all while taking up minimal space.
For which materials and industries is the BoVac Disc XL352 suitable?
The BoVac Disc XL352 is designed for filtering large volumes of suspensions in various sectors, including aluminium oxide (for seed and product filtration in refineries), coal (for flotation concentrates), potash and fertilisers (for wet processing), concentrates from ore and mineral processing (such as iron ore, copper, zinc, lithium and nickel), and tailings (for environmentally friendly dewatering and storage). Its fully automatic operation also makes it suitable for varying process conditions.
Is maintenance time-consuming?
No! The BoVac Disc XL352 is designed for fully automatic continuous operation – operations engineers worldwide describe it as "switch on and forget". Changing the filter cloth is quick and easy. Fibre-reinforced polymer segments are available as an option; weighing just about 13 kg, they are particularly easy to handle.
How much space does the BoVac Disc XL352 take up in relation to its capacity?
It uses significantly less floor space than comparable systems. Thanks to its vertical disc arrangement and extremely large specific filter area, the BoVac Disc XL352 requires only a fraction of the floor space that an equivalent throughput filter press would occupy. This is particularly relevant for retrofitting existing plants, where space is often limited.
How well can the BoVac Disc XL352 be integrated into existing processes?
Very good! The fully automatic operation and substantial performance reserves enable excellent adaptation to process fluctuations. The BoVac Disc XL352 complies with standards and can be integrated worldwide. BOKELA provides comprehensive engineering data, simulations and technical support right from the planning stage – ensuring that project deadlines can be reliably met.
How secure is the investment throughout its entire life cycle?
Exceptionally high! The BoVac Disc XL352 is designed for years of continuous operation in extreme industrial conditions. All components, including the filter segments, shaft, filter pipes, control head, drive and filter trough, have been systematically engineered for maximum durability. BOKELA provides certifications in accordance with international standards, as well as audit reports and extended warranty programmes. Reference installations have been operating for many years without any unplanned downtime.
How can I tell if the BoVac Disc XL352 is suitable for my plant?
Firstly, download our free whitepaper, which includes a case study on using the BoVac Disc XL352. You can also contact us directly to arrange a free initial consultation. We carry out pilot tests and bespoke process analyses for eligible enquiries.
The BoVac Disc XL352 excels wherever large volumes need to be filtered reliably.

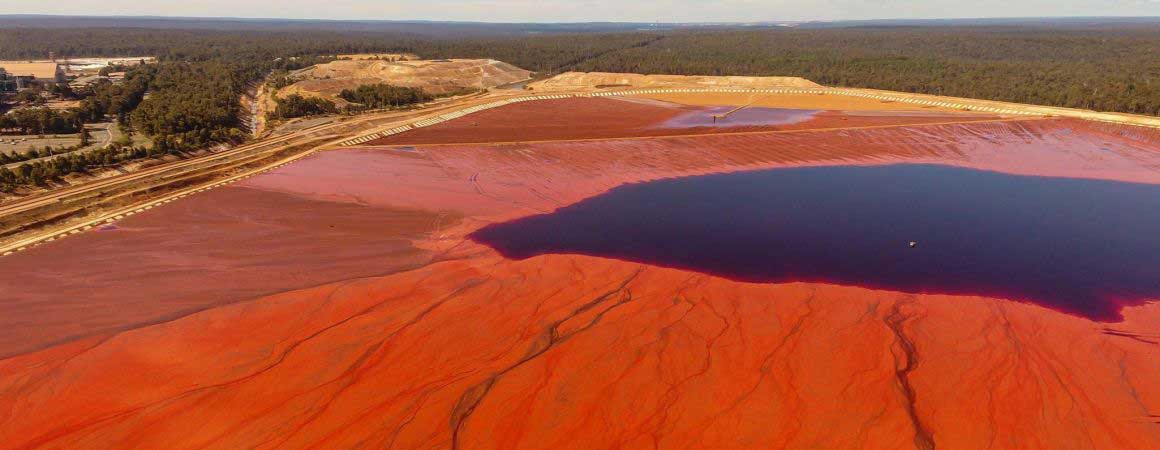

The processing and storage of tailings from the processing of ores and minerals are a great challenge for many plant operators. Cost-effective filtration technologies are required for a water-conserving treatment and an environmentally safe storage of these residues.
Read more
Economy and environmental protection are of the highest relevance for modern, efficient processes in coal processing. BOKELA provides the right filter technologies for these requirements. They set their own standards and have established themselves in the industry for years.
Read more
Get the maximum out of everything you do. This maxime also applies to the preparation of ore concentrates. In order to achieve the highest possible yield of base metals, the demands on the filtration technologies are increasing. BOKELA offers solutions to filter even very fine concentrates.
Read more
In the production of fertilizers, potash salts are often an important raw material. If wet processing is used, filtration is necessary. As Iow-speed filtration technology, the BoVac Pan and BoVac Disc filters provide a new Iow-maintenance solution with Iow-noise level.
Read more

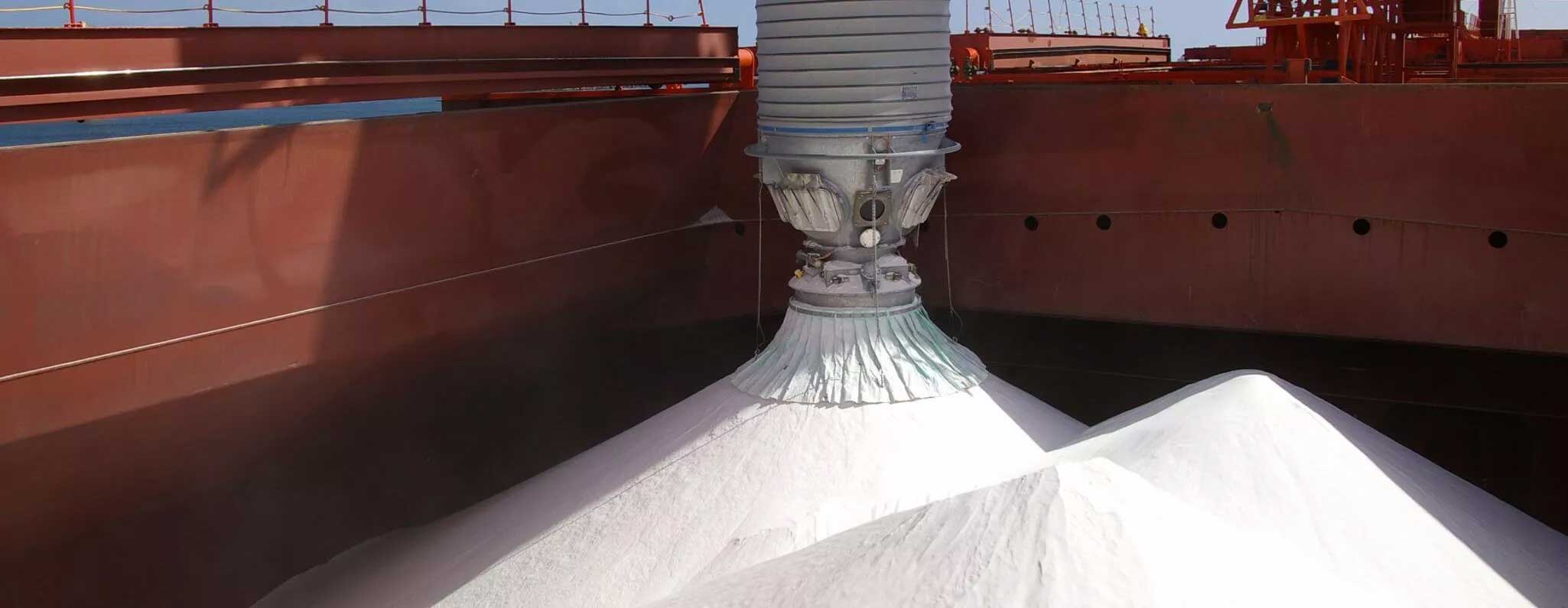

For alumina refineries, BOKELA offers several filtration technologies. For seed and product filtration, BoVac Disc and BoVac Pan filters are considered the top solutions worldwide at numerous alumina refineries. BoHiBar Disc filters are a breakthrough technology for achieving dry bauxite residue.
Read more
